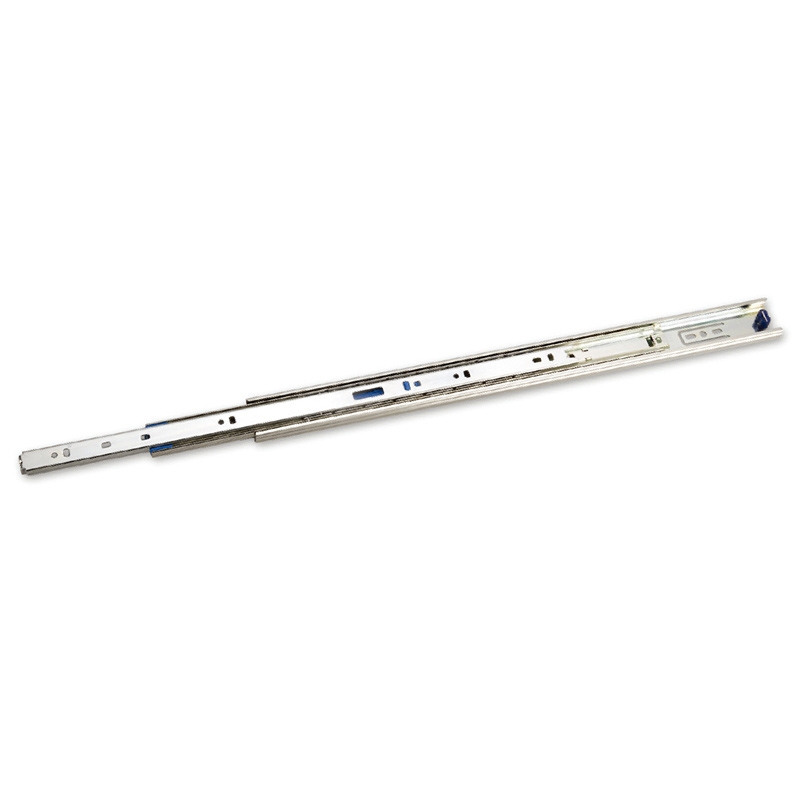

Cabinet Drawer Slides 75 Lb
Applications: This drawer slide can be used in Home Cabinets, Box Drawers, Desk and Storage Drawers and File Drawers .
| Item NO. | Slide Length / mm (inch) | Slide Travel / mm (inch) | Loading Capacity kg (lb)/ pair |
|---|---|---|---|
| (SLD1) | 250.0 (9.84) | 255.0 (10.04) | 17.5 (38.0) |
| (SLD2) | 300.0 (11.81) | 313.0 (12.32) | 20.7 (45.0) |
| (SLD3) | 350.0 (13.78) | 363.0 (14.30) | 25.7 (56.0) |
| (SLD4) | 400.0 (15.75) | 405.0 (15.94) | 34.5 (75.0) |
| (SLD5) | 400.0 (15.75) | 455.0 (17.91) | 34.5 (75.0) |
| (SLD6) | 400.0 (15.75) | 505.0 (19.88) | 34.5 (75.0) |
| (SLD7) | 550.0 (21.65) | 555.0 (21.85) | 34.5 (75.0) |
| (SLD8) | 600.0 (23.62) | 605.0 (23.82) | 29.5 (64.0) |
Holes Position mm (inch)
| Item NO. | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| (SLD1) | - | - | - | - | 192.0 (7.56) | 160.0 (6.30) | - | - | - |
| (SLD2) | 128.0 (5.04) | - | - | - | 242.0 (9.53) | 128.0 (5.04) | 224.0 (8.82) | - | - |
| (SLD3) | 128.0 (5.04) | - | - | - | 242.0 (9.53) | 128.0 (5.04) | 224.0 (8.82) | - | - |
| (SLD4) | 128.0 (5.04) | - | - | - | 342.0 (13.46) | 128.0 (5.04) | 224.0 (8.82) | 320.0 (12.60) | - |
| (SLD5) | 128.0 (5.04) | - | 320.0 (12.60) | - | 392.0 (15.43) | 128.0 (5.04) | 224.0 (8.82) | 352.0 (13.86) | - |
| (SLD6) | 128.0 (5.04) | - | 320.0 (12.60) | 320.0 (12.60) | 392.0 (15.43) | 128.0 (5.04) | 224.0 (8.82) | 416.0 (16.38) | - |
| (SLD7) | 128.0 (5.04) | - | 320.0 (12.60) | 320.0 (12.60) | 492.0 (19.37) | 128.0 (5.04) | 224.0 (8.82) | 352.0 (13.86) | 448.0 (17.64) |
| (SLD8) | 128.0 (5.04) | 224.0 (8.82) | 416.0 (16.38) | - | 542.0 (21.34) | 128.0 (5.04) | 224.0 (8.82) | 352.0 (13.86) | 480.0 (18.90) |
